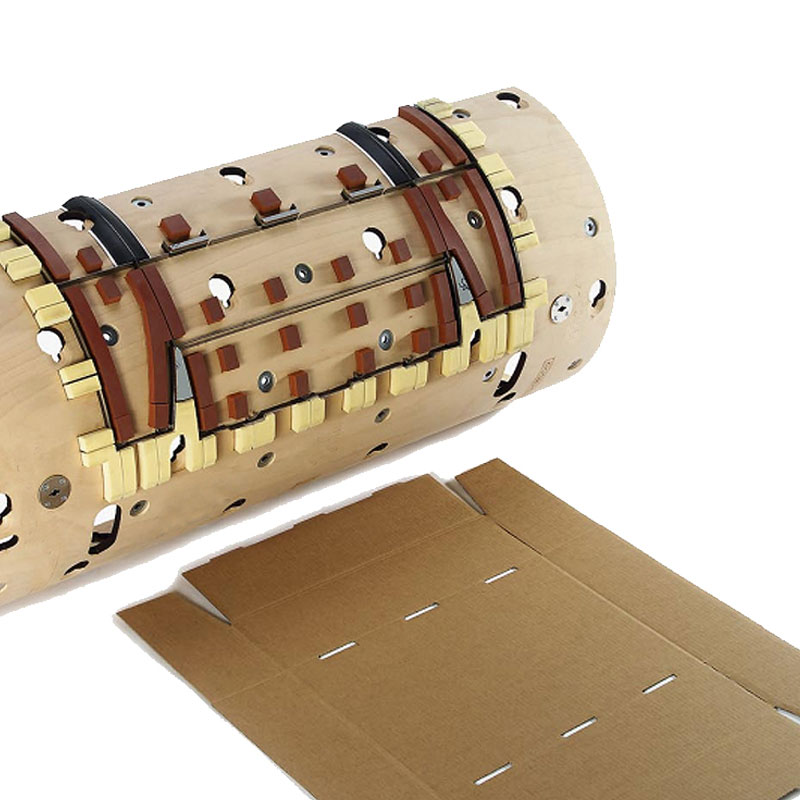

It can be used for die-making, and used to cut cardboard, corrugated board, labels, post card, business cards, and jigsaw puzzle. With different thickness and bevel shape.
產品詳情
It can be used for die-making, and used to cut cardboard, corrugated board, labels, post card, business cards, and jigsaw puzzle. With different thickness and bevel shape.
技術指標
| name | Thickness | Height/length (mm/mm) | Package (pcs/m/box) | Body hardness | Edge angle |
| Cutting rule | 0.45 | 23~23.80/1000 | 150 | 38HRC-54HRC | 42°\52° |
| 0.53 | 23~23.80/1000 | 125 | |||
| 0.71 | 23~23.80/1000 | 100 | |||
| 1.05 | 23~23.80/1000 | 70 | |||
| 1.42 | 23~23.80/1000 | 50 | |||
| Creasing rule | 0.53 | 22.00~23.80/1000 | 125 | 38HRC-54HRC | |
| 0.71 | 22.00~23.80/1000 | 100 | |||
| 1.05 | 22.00~23.80/1000 | 70 | |||
| 1.42 | 22.00~23.80/1000 | 50 | |||
| Wave rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | |
| Perforating rule | 0.71 | 23~23.80/1000 | 100 | 38HRC-54HRC | 42°\52° |
| 1.05 | 23~23.80/1000 | 70 |
