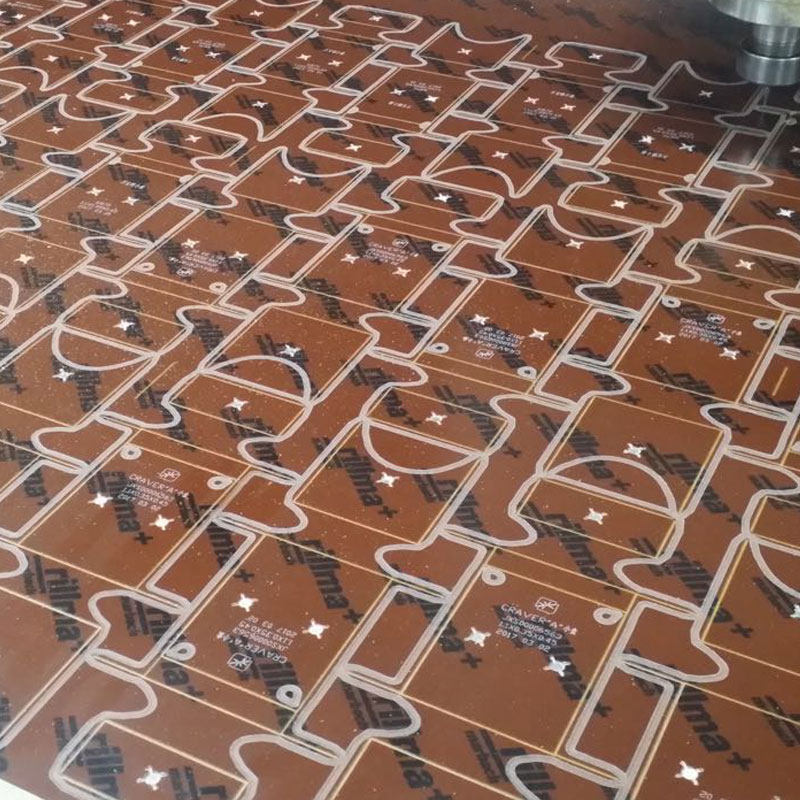

HD1100 PERTINAX machine is mainly for cutting the PERTINAX in Sandwich die industry.
With stable body structure design, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfy the die making factory who need to make the sandwich dies.
產品詳情
HD1100 PERTINAX machine is mainly for cutting the PERTINAX in Sandwich die industry
獨特的功能
● High cutting speed, air walking speed reaches 15 meters per minute
● Marble working table flatness is good
● Large spindle power, the PERTINAX cutting result is good.
● Use standard G code.it Can use the G code generate from other software and also can use the code from our PERTINAX code generator
Auto knife changer can finish the production at one time
技術指標
| Model No. | HD1100 |
| X-axis travel-length | 1100mm |
| Y-axis travel-length | 1100mm |
| Z-axis travel-length | 80mm |
| Moving speed | 15m/min |
| Positioning Precision | 0.01mm |
| Re-Positioning Precision | 0.005mm |
| Max weight of table load | 300KG |
| Resolving power | 0.001 |
| Power | 380V/6KW ( three-phase supply) |
| Overall dimensions (L x W x H) | 1600*1700*1400mm |
| G. Weight | 1500kg |
