JCPY-1225 Laser Cutting Machine

產品詳情

JCPY-1225 Flat & Rotary die board laser machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.

With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make both flat and rotary dies.

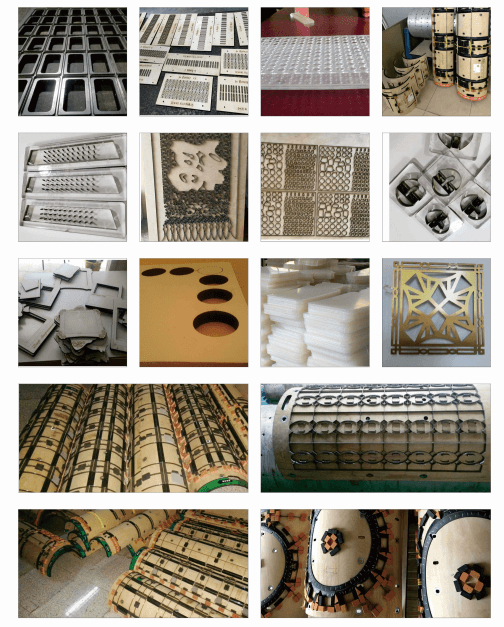

CUTTING SAMPLE & APPLICATION AREA:

技術指標

Model No.	JCPY-1225
Power	1000W
The table moving	Gantry construction
Laser output power	High power axial flow CO2 laser source
X-axis travel	2440mm
Y-axis travel	1220mm
Z-axis travel	120mm
The maximum cutting board size	170~800*3000mm
Cutting speed	Flat: 70~90m/h	Rotary: 45-55m/h
Re-Positioning Precision	≤0.02mm
Controlling system	Germany PA
Transmission system	Ball screw & Linear guide (TAIWAN)
Driving system	Japan high-precision servo drive and motors
Optical system	US
Moving structure	Gantry
Chiller system	Made in China
Laser generator gas matched	He, N2, CO2 (99.999%)
Laser cutting thickness	0.1-30mm
